AGV Caster Wheels


Description:

Tilting agv caster wheels
Size: Ø 75mm , Ø100mm
Load: 450kg,500kg
Harndess: 95 Shore A
Wheels – Cast polyurethane 95 Shore A, steel core with ball bearings.
Bracket – Welded steel, forged steel plate, zinc plated, double thrust bearing in the swivel head, grease nipple.

Tilting agv caster wheels,The shaft of the AGV castor wheel series self balance AGV casters has a structure that tilts freely according to the flatness of the floor in the range of ±5º from its central axis.

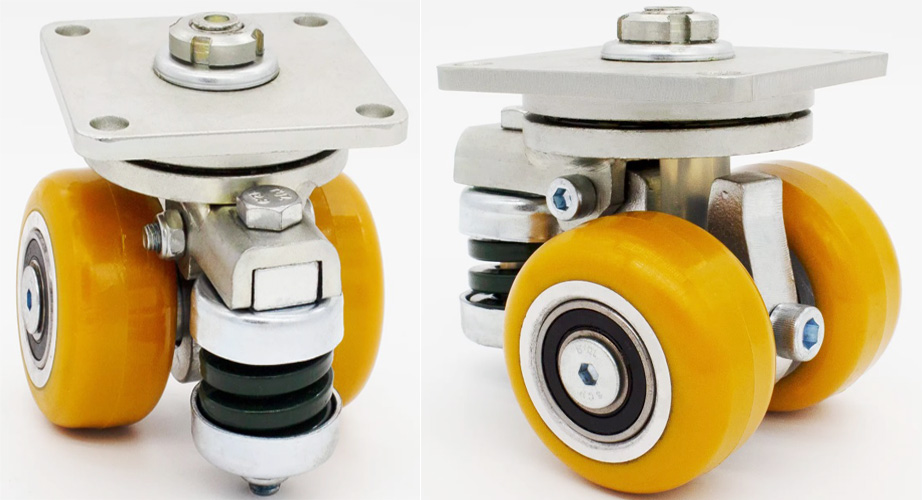

Tilting agv caster wheels.jpgTilting agv casters.jpg

This freedom ensures that tilting agv casters always keeps contact with the floor, causing smooth AGV movement and protection of the loaded cargo when changing directions. The two wheels are separated from each other, causing the two wheels to rotate first in opposite directions when the AGV rotates and then start to rotate in the same direction. This self-compensating effect can prevent line deviation that occur as the caster of the AGV rolls in one direction.

Self-balancing Caster has the newly developed tilting structure which can tilt freely according to the flatness of the ground while at the same time, it also maintains stability and effectively reduces the wobble of the caster when rotating. Two wheels are under force at the same time minimize wear and tear, thus extending service life. The caster design features elastic and noise reduction functions. Dersheng’s Self-balancing Caster fork is made of high tensile steel with harden raceway to provide long lasting service life and extreme high load capacity while maintaining low profile and overall height. It is suitable for application like AMR/AGV and robotic industry products.

self balance AGV caster wheels.jpg

Applications

Highly suitable for AGV applications with uneven floors.
