Hospital and medical bed caster wheels with direction lock and total brake

A unified entity without bolts for the shell forming and save anti-winding function of the shell

Stainless spring can 10000 times braking testing,wheel made by PP core + TPR tread with precision ball bearing.

Wheel Material	TPR+PP
Wheel Diameter	75mm	100mm	125mm
Size	3 inch	4 inch	5 inch
Tread Width	32mm	32mm	32mm
Bearing Spec.	Ball Bearing
Overall Height	115mm	138.5mm	164.5mm
Round Stem Size	Ø11*19.5mm	Ø28*45mm	Ø28*45mm
Load Capacity	80kg	100kg	120kg
Offset	30mm	30mm	32mm

BRAKES FUNCTION

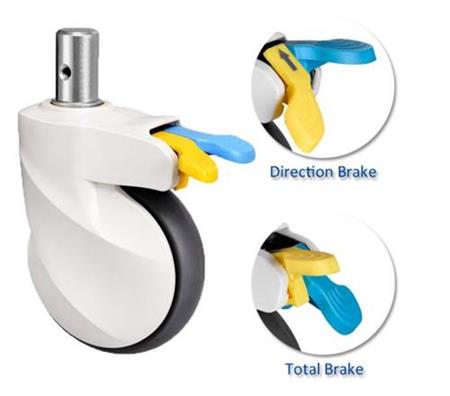

Medical castor wheel with direction and total lock , Press yellow pedal caster available to move at straight line.When braked the blue pedal, the caster will be locked both turning and rotation.

Features:

Easy installation

Floor protect

Anti-abrasion, shock absorber, impact resistance function

Any interesting please contact us freely Via: [email protected]

---
